Industrial Sandwich Panels
FREE

    Description

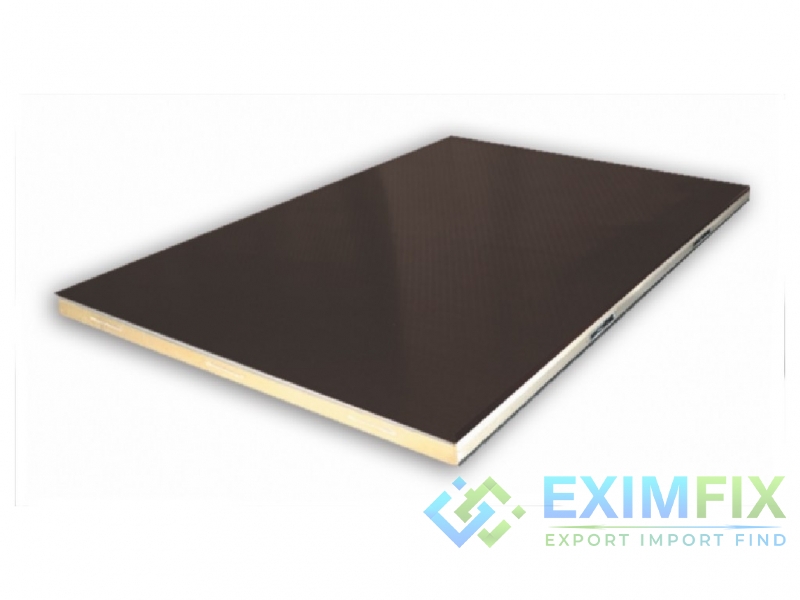

Floor Panel
Standard floor panels use plywood with a pattern of 10 mm thickness on the upper surface to prevent slippage, and 0.50 mm thick galvanized polyester painted sheet on the lower surface. Upon request, the top surface of the floor panel can be produced by using 0.5 mm thick CrNi sheet on OSB. Floor panels can withstand a fixed load of 1500 kg / m2 and a moving load of 200 kg / m2. The produced panels can be produced in thicknesses of 50-80-100-150-200 mm, with a fixed width of 1110 mm and a length of up to 13 meters. Panels are locked tightly to each other in order to ensure minimum heat transfer thanks to the eccentric locking mechanism.
Zemin Panel
Standart zemin panelleri üst yüzeyi 10 mm kalınlıkta kaymaları önlemek için desenli plywood, alt yüzeyi ise 0,50 mm kalınlıkta galvaniz üzeri polyester boyalı sac kullanılmaktadır. Talebe göre zemin paneli üst yüzeyi OSB üzeri 0,5 mm kalınlıkta CrNi sac kullanılarak üretilebilmektedir. Zemin panelleri 1500 kg/m2 sabit, 200 kg/m2 hareketli yüke dayanabilmektedir. Üretilen paneller 50-80-100-150-200 mm kalınlıklarda, sabit 1110 mm eninde, 13 metre uzunluğuna kadar üretim yapılabilmektedir. Paneller eksantirik kilit mekanizması sayesinde montaj yapılırken minimum ısı transferi sağlayacak şekilde birbirine sıkıca kilitlenmektedir.
لوحة الأرضية n تستخدم الألواح الأرضية القياسية خشب رقائقي بنمط سمك 10 مم على السطح العلوي لمنع الانزلاق ، وصفيحة مطلية بالبوليستر المجلفن بسمك 0.50 مم على السطح السفلي. عند الطلب ، يمكن إنتاج السطح العلوي للوح الأرضية باستخدام لوح
OSB بسمك 0.5 مم على CrNi
. يمكن أن تتحمل الألواح الأرضية حمولة ثابتة تبلغ 1500 كجم / م 2 وحمل متحرك يبلغ 200 كجم / م 2. يمكن إنتاج الألواح بسماكات 50-80-100-150-200 مم ، بعرض ثابت 1110 مم وبطول يصل إلى 13 متر. الألواح مغلقة بإحكام مع بعضها البعض من أجل ضمان الحد الأدنى من نقل الحرارة بفضل آلية القفل اللامتراكز
